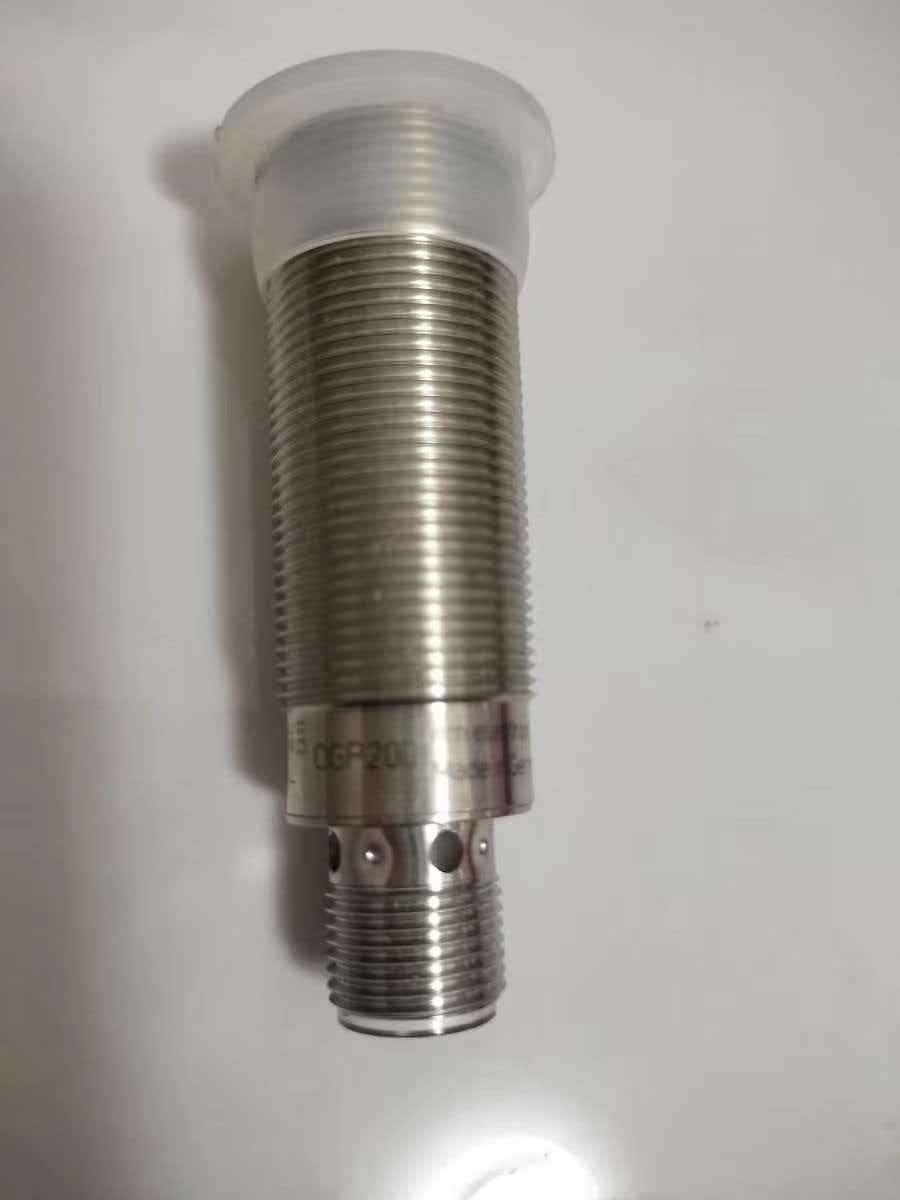

OGP200 IFM

  • OGP200 IFM
  • OGP200 IFM
원래 장소 독일
브랜드 이름 IFM
모델 번호 OGP200
최소 주문 수량 1
가격 INQUIRY

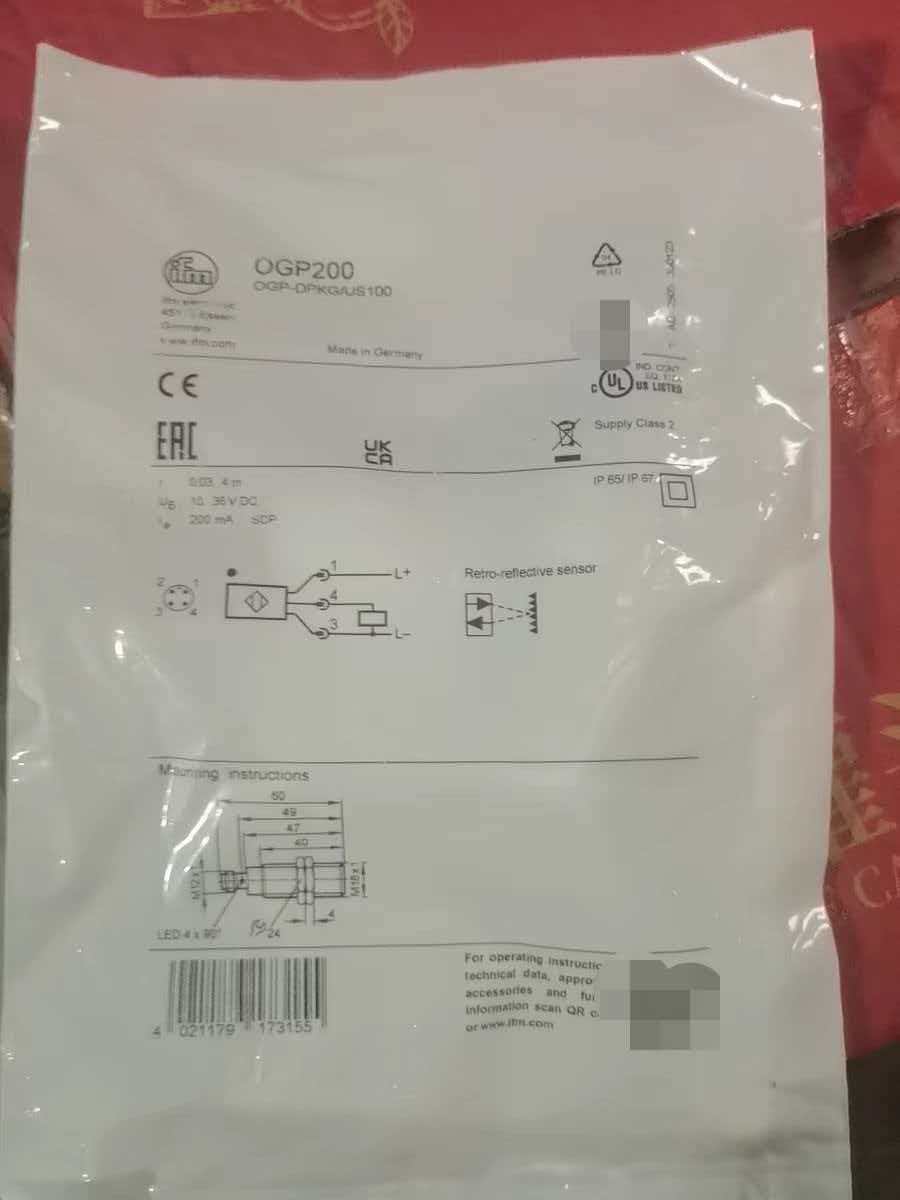

포장 세부 사항 원래의
배달 시간 주식/1-3 일
지불 조건 티/티
공급 능력 99+
제품 상세 정보
제품 유형 IFM OGP200 역반사 광전 센서 상표 IFM 전자
부품 번호 OGP-DPKG/US100 순서 코드 OGP200
센서 유형 회귀 반사형(편광 필터 포함) 광원 624nm 적색광
탐지 원리 프리즘 반사경을 통한 비접촉식 광학 감지 작동 전압 10...36V DC
현재 소비 15mA 무게 18.14g(0.04파운드)
메시지를 남겨주세요
제품 설명

### Product Overview The IFM OGP200 is a high-performance retro-reflective photoelectric sensor designed for reliable object detection in industrial automation environments. Engineered with precision optics and robust construction, this sensor delivers consistent performance across diverse applications, from material handling to traffic management. Its non-contact sensing principle eliminates wear and tear, making it ideal for harsh operating conditions where direct contact is impractical{insert_element_0_}.

Core Features

  • Retro-Reflective Technology: Utilizes a prismatic reflector (Ø 80 E20005) for detection ranges of 0.03 to 4 meters, ensuring versatile coverage for small and large objects alike14.
  • Optical Design: 624nm red light source with integrated polarization filter, enabling stable detection of shiny or reflective surfaces while minimizing ambient light interference17.
  • High-Speed Response: 1000Hz switching frequency supports fast-moving target detection in high-throughput automation lines14.
  • Robust Construction: M18 x 1 threaded stainless steel (1.4404/316L) housing with PMMA lens, rated IP67 for dust and water resistance in demanding industrial settings47.

Technical Specifications

Parameter Details
Operating Voltage 10...36 V DC
Current Consumption 15 mA
Output Configuration PNP, Dark-On (dark operate) mode
Maximum Output Current 200 mA DC
Output Voltage Drop ≤ 2.5 V DC
Protection Features Reverse polarity protection, pulsed short-circuit protection, overload protection
Ambient Temperature Range -25...60 °C
Connection M12 connector (A-coded)
Housing Dimensions M18 x 1 / L = 60 mm
Compliance RoHS, EN 60947-5-2
Weight 0.04 lbs (18.14 g)

Key Applications

The OGP200 excels in multiple industrial scenarios, including:
  • Gate Control Systems: Detects vehicles/pedestrians for automatic gate operation2.
  • Traffic Management: Monitors vehicle presence at intersections to optimize signal timing2.
  • Conveyor & Material Handling: Ensures reliable box, pallet, or component detection for flow control58.
  • Packaging Machinery: Identifies product presence, lid detection, and color-independent target sensing5.
  • Automotive Assembly: Detects diverse components (painted bodies, seats, tires) with consistent performance across surface types5.
  • Food & Beverage Industry: Withstands washdown environments while detecting metal hooks and packaging components5.

Installation & Durability

  • Versatile Mounting: Threaded housing with two lock nuts allows easy installation on walls, ceilings, or conveyor frames24.
  • Low Maintenance: Rugged design and polarization filter technology reduce calibration needs and ensure long-term stability.
  • Interference Immunity: Advanced optical filtering prevents false triggers from sunlight, machine lighting, or reflective materials.
